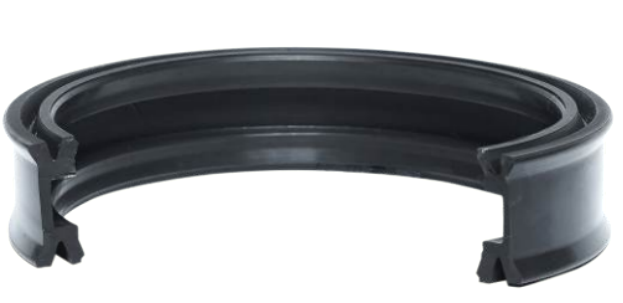

PS017 Z5 pneumatic piston seal
PS017 Z5 is a piston seal for double-acting pneumatic cylinders, featuring a U-cup design with integrated guiding function. A high-temperature version is also available.
Z5 pneumatic piston seal working environment
Temperature:
NBR: 0 ° C / +80 ° C
FKM: 0 ° C/ +250 ° C
Medium: Oil-lubricated air as well as dry air and oil-free air (primary lubrication required for assembly).
Pressure: 16 bar
Speed: <1m/s
Medium: Compressed air, both lu-bricated and oil-free (after greasing for fitting)

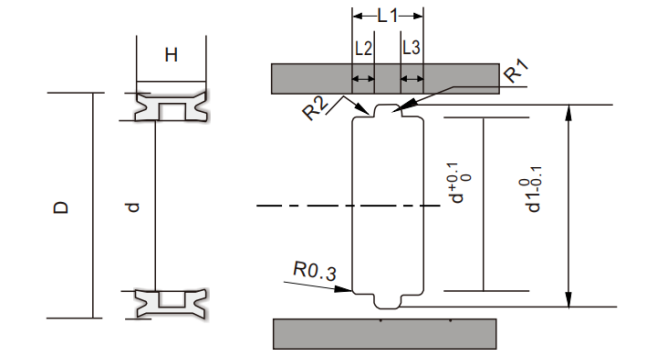

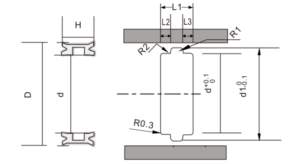

Z5 pneumatic seal dimension:
| Part No. | D | d | H | d1 | L1 | L2 | L3 | R1 | R2 |
| Z5 1610 | 16 | 10 | 10.5 | 13.5 | 12 | 3 | 4.5 | 0.9 | 0.2 |
| Z51812 | 18 | 12 | 10.5 | 15.5 | 12 | 3 | 4.5 | 0.9 | 0.2 |
| Z5 2014 | 20 | 14 | 10.5 | 17.5 | 12 | 3 | 4.5 | 0.9 | 0.2 |
| Z5 2518 | 25 | 18 | 12 | 22.5 | 13 | 3 | 5 | 1.3 | 0.2 |
| Z5 2822 | 28 | 22 | 10.5 | 25.5 | 12 | 3 | 4.5 | 0.9 | 0.2 |
| Z5 3023 | 30 | 23 | 12 | 27.5 | 13 | 3 | 5 | 1.3 | 0.2 |
| Z5 3225 | 32 | 25 | 12 | 29.5 | 13 | 3 | 5 | 1.3 | 0.2 |
| Z5 3528 | 35 | 28 | 12 | 32.5 | 13 | 3 | 5 | 1.3 | 0.2 |
| Z5 4033 | 40 | 33 | 12 | 37.5 | 13 | 3 | 5 | 1.3 | 0.2 |
| Z5 4538 | 45 | 38 | 12 | 42.5 | 13 | 3 | 5 | 1.3 | 0.2 |
| Z5 5043 | 50 | 43 | 12 | 47.5 | 13 | 3 | 5 | 1.3 | 0.2 |
| Z5 5446 | 54 | 46 | 13 | 51.5 | 15 | 4 | 5.5 | 1.3 | 0.2 |
| Z5 6353 | 63 | 53 | 17 | 60 | 19 | 5 | 7 | 1.6 | 0.3 |
| Z5 6356 | 63 | 56 | 12 | 60.5 | 13 | 3 | 5 | 1.3 | 0.3 |
| Z5 7007 | 70 | 62 | 13 | 67.5 | 15 | 4 | 5.5 | 1.6 | 0.3 |
| Z5 7666 | 76 | 66 | 18 | 73 | 20 | 6 | 7 | 1.6 | 0.3 |
| Z5 8067 | 80 | 72 | 13 | 77.4 | 15 | 4 | 5.5 | 1.6 | 0.3 |
| Z5 8070 | 80 | 70 | 18 | 77 | 20 | 6 | 7 | 1.6 | 0.3 |
| Z5 A088 | 100 | 88 | 21 | 96.5 | 23 | 8 | 7.5 | 1.6 | 0.4 |
| Z5 A089 | 100 | 90 | 16 | 97 | 18 | 4 | 7 | 1.6 | 0.3 |
| Z5 C511 | 125 | 113 | 15 | 122 | 17 | 5 | 6 | 1.6 | 0.4 |
| Z5 C513 | 125 | 113 | 21 | 121.5 | 23 | 8 | 7.5 | 1.6 | 0.4 |
| Z5 D017 | 130 | 120 | 17 | 127 | 19 | 5 | 7 | 1.6 | 0.3 |
| Z5 E028 | 140 | 128 | 21 | 136.5 | 23 | 8 | 7.5 | 1.6 | 0.4 |
| Z5 F014 | 150 | 140 | 17 | 147 | 19 | 5 | 7 | 1.6 | 0.3 |
| Z5 G045 | 160 | 145 | 26 | 155.5 | 29 | 10 | 9.5 | 1.6 | 0.4 |
| Z5 L085 | 200 | 185 | 26 | 195.5 | 29 | 10 | 9.5 | 1.6 | 0.4 |
| Z5 pneumatic piston seal |
